WeaponAnimations

×× Animated weapons ××

❗❗ Experimental. Not included in the release version due to performance issues. ❗❗

Adds your own custom animations to warmup/cooldown stages of weapons.

How does it work?

Every <li> node (anim) in either <warmupAnim> or <cooldownAnim> overrides the default equipment rendering for <duration> in ticks. The animation goes in the order of nodes in the list.

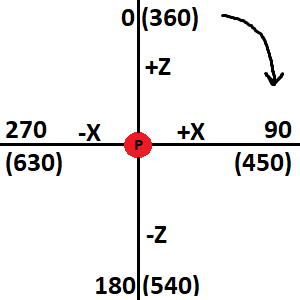

Use <startRot> and <endRot> to change the weapon's rotation in an anim node and <startOffset> and <endOffset> to change the offset.

Use <pause> to freeze the anim at its starting points and <smooth> to make the animation speed less linear (SmoothStep).

---

Performance impact: 🟧 Very bad. Gets worse over time, scales with the number of pawns and animated weapons.

Type: Comp

XML Node: ThingDef/comps/li

---

Examples:

Sword

<comps>
    <li Class="flangoCore.CompProperties_AnimatedWeapon">
        <cooldownAnim>
            <li> <!-- Swing from one side to another -->
                <duration>10</duration>
                <startRot>20</startRot>
                <endRot>160</endRot>
                <startOffset>(0.6,0,0.5)</startOffset>
                <endOffset>(0.6,0,-0.5)</endOffset>
                <smooth>true</smooth>
            </li>
            <li> <!-- Pause at last anim's endOffset -->
                <pause>true</pause>
                <duration>5</duration>
                <startRot>160</startRot>
                <startOffset>(0.6,0,-0.5)</startOffset>
            </li>
            <li> <!-- Swing to the center -->
                <duration>10</duration>
                <startRot>160</startRot>
                <endRot>90</endRot>
                <startOffset>(0.6,0,-0.5)</startOffset>
                <endOffset>(0.4,0,0)</endOffset>
                <smooth>true</smooth>
            </li>
            <li> <!-- Thrust the sword forward (stab) -->
                <duration>10</duration>
                <startRot>90</startRot>
                <endRot>90</endRot>
                <startOffset>(0.4,0,0)</startOffset>
                <endOffset>(1,0,0)</endOffset>
                <smooth>true</smooth>
            </li>
            <li> <!-- Pull the sword back -->
                <duration>10</duration>
                <startRot>90</startRot>
                <endRot>90</endRot>
                <startOffset>(1,0,0)</startOffset>
                <endOffset>(0.4,0,0)</endOffset>
                <smooth>true</smooth>
            </li>
            <li> <!-- Pause -->
                <pause>true</pause>
                <duration>5</duration>
                <startRot>90</startRot>
            </li>
        </cooldownAnim>
    </li>
</comps>

Shotgun spin

<comps>
    <li Class="flangoCore.CompProperties_AnimatedWeapon">
        <cooldownAnim>
            <li> <!-- Move slightly closer to the pawn -->
                <duration>15</duration>
                <startRot>80</startRot>
                <endRot>80</endRot>
                <startOffset>(0.4,0,0)</startOffset>
                <endOffset>(0.3,0,0)</endOffset>
                <smooth>true</smooth>
            </li>
            <li> <!-- Speen -->
                <duration>30</duration>
                <startRot>440</startRot>
                <endRot>80</endRot>
                <startOffset>(0.3,0,0)</startOffset>
                <endOffset>(0.4,0,0)</endOffset>
                <smooth>true</smooth>
            </li>
        </cooldownAnim>
    </li>
</comps>
