CableChain

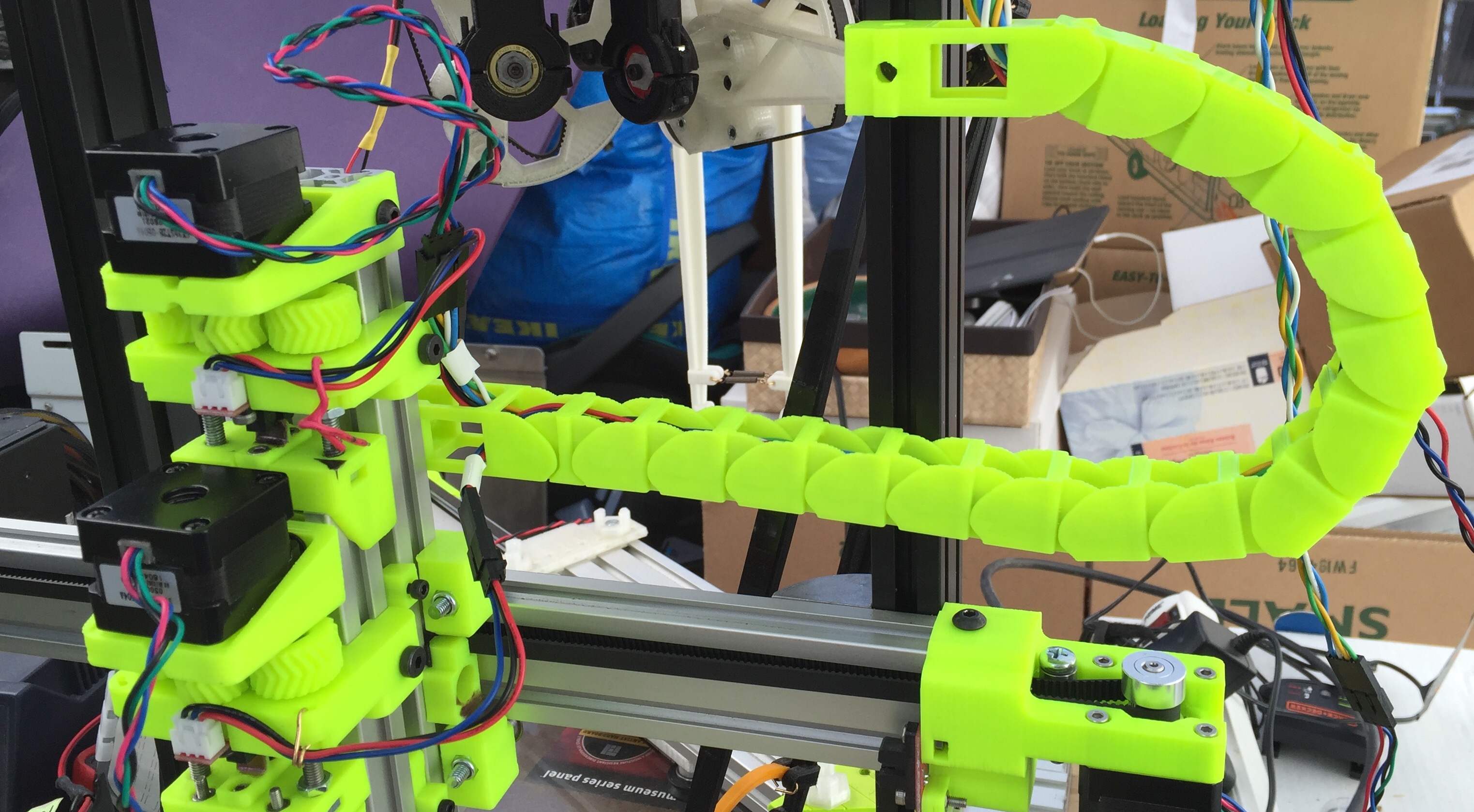

The 3DP PLA-printable X20 Cable Chain is designed to work with 20mm aluminum extrusions in tight spaces. The cable chain can carry up to 14 wires for two steppers and two optical limit stops. The chain itself consists of just three elements:
The cable chain is 20mm wide and uses a symmetric Hole Link to reverse the pin/hole direction so that the same End Mount Link can be used for both ends of the chain.
- M5x10mm flathead screw (2)
- M5 extrusion nut (2)
Tested with Lulzbot Mini and PushPlastic PLA. Used Lulzbot Cura PLA (eSun) profile with no support.
